PRODUCTS

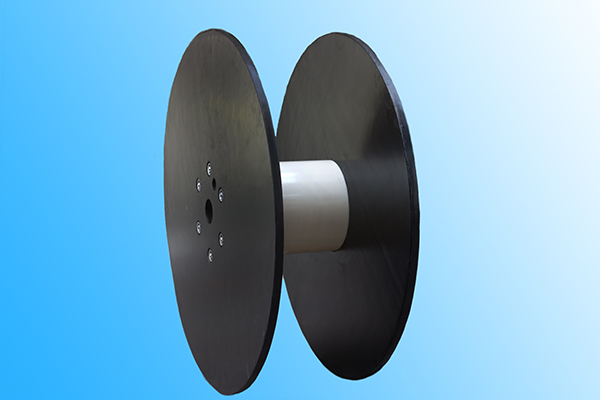

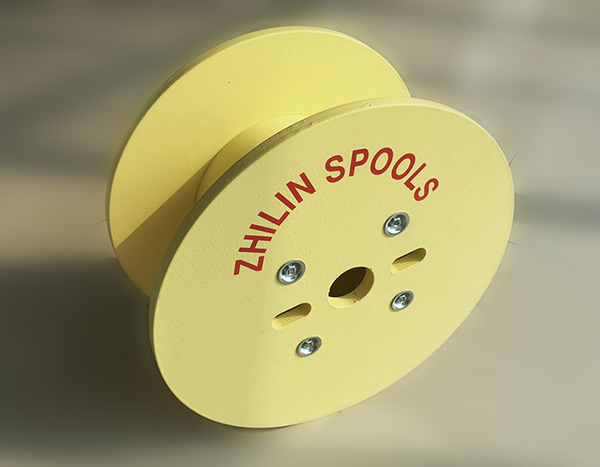

Scope: Adopt HDPE plastic, blow molding process. It is mainly used for all kinds of plastic hoses, high pressure pipes and all kinds of light large diameter packages.

Note: The mouse over and view the pictures
No. Model Map Structure Material Side diameter d1 Cylinder diameter d2 Aperture d3 Within the width L2 External width L1 Side S R e1 e2
1 ML400 combination Paper plastic / all plastic wpc 400 User self determination 200 User self determination User self determination 280以内 L2+2S 15/18/20/25 - - -
2 ML450 combination Paper plastic / all plastic wpc 450 User self determination 200 User self determination User self determination 280以内 L2+2S 15/18/20/25 - - -
3 ML500 combination Paper plastic / all plastic wpc 500 User self determination 200/250 User self determination User self determination Ø200的280以内 Ø250的400以内 L2+2S 18/20/25/30 - - -
4 ML560 combination Paper plastic / all plastic wpc 560 User self determination 200/250 User self determination User self determination Ø200的280以内 Ø250的400以内 L2+2S 18/20/25/30 - - -
5 ML600 combination Paper plastic / all plastic wpc 600 User self determination 200/250/315 User self determination User self determination Ø200的280以内 Ø250的400以内 Ø315的400以内 L2+2S 18/20/25/30 - - -
6 ML630 combination Paper plastic / all plastic wpc 630 User self determination 200/250/315 User self determination User self determination Ø200的280以内 Ø250的400以内 Ø315的400以内 L2+2S 18/20/25/30 - - -
7 ML710 combination Paper plastic / all plastic wpc 710 User self determination 200/250/315 User self determination User self determination Ø200的280以内 Ø250的400以内 Ø315的400以内 L2+2S 18/20/25/30 - - -
8 ML760 combination Paper plastic / all plastic wpc 760 User self determination 200/250/315 User self determination User self determination Ø200的280以内 Ø250的400以内 Ø315的400以内 L2+2S 18/20/25/30 - - -
9 ML800 combination Paper plastic / all plastic wpc 800 User self determination 250/315/400 User self determination User self determination Ø250的400以内 Ø315的400以内 Ø400的490以内 L2+2S 20/25/30/35 - - -
10 ML910 combination Paper plastic / all plastic wpc 910 User self determination 250/315/400 User self determination User self determination Ø250的400以内 Ø315的400以内 Ø400的490以内 L2+2S 20/25/30/35 - - -
11 ML1000 combination Paper plastic / all plastic wpc 1000 User self determination 315/400 User self determination User self determination Ø315的400以内 Ø400的490以内 L2+2S 20/25/30/35 - - -
12 ML1200 combination Paper plastic / all plastic wpc 1200 User self determination 315/400 User self determination User self determination Ø315的400以内 Ø400的490以内 L2+2S 20/25/30/35 - - -
