PRODUCTS


Scope: Adopt HDPE plastic, blow molding process. It is mainly used for all kinds of plastic hoses, high pressure pipes and all kinds of light large diameter packages.

Note: The mouse over and view the pictures

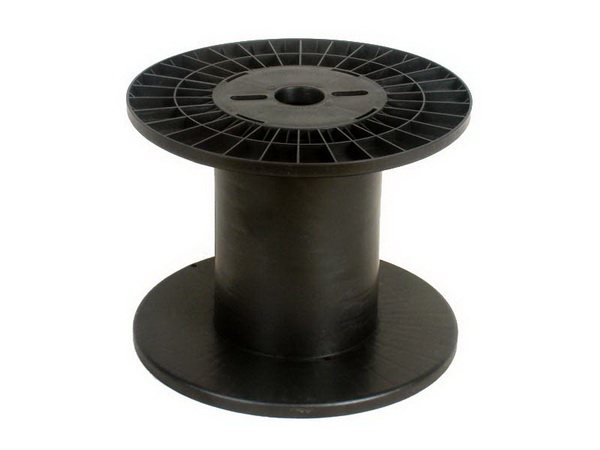

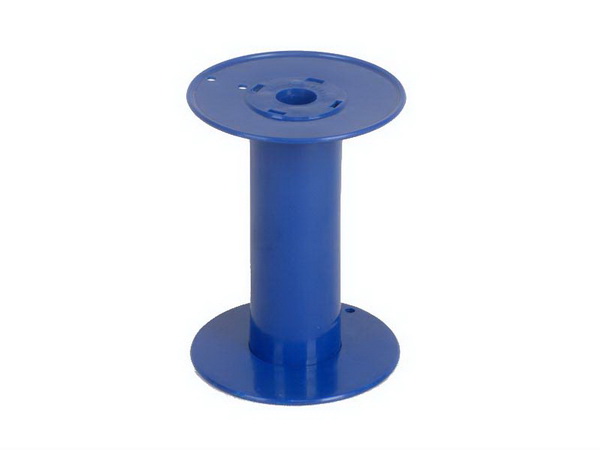

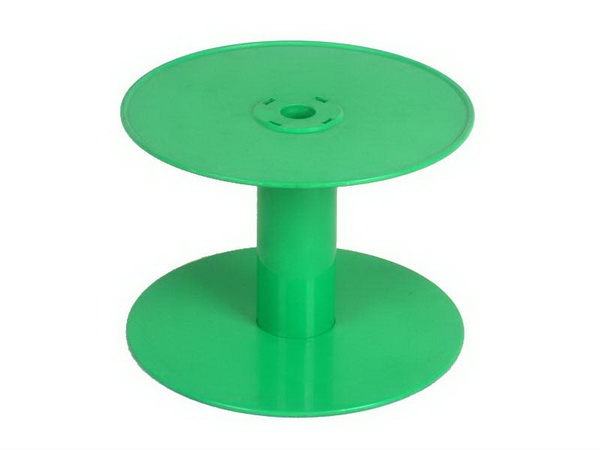

No. Model Map Structure Material Side diameter d1 Cylinder diameter d2 Aperture d3 Within the width L2 External width L1 Side S R e1 e2
1 PL120 Overall PS/PP 120 70 30 60-200 70-210 5 - - -
2 PL130 Overall PS 130 60 20 90 110 10 - - -
3 PL140 Overall PS/PP 140 38 34 101 105 2 - - -
4 PL150A Combination PS/PP/ABS 150 40 30 User defined L2+8 4 - - -
5 PL150B Combination PP 150 70 30 User defined L2+10 5 - - -
6 PL160 Combination PP 160 70 30 60-200 70-210 5 - - -
7 PL170A Overall PS/PP 170 56 50 85 95 5 - - -
8 PL170B Overall PS/PP 170 56 50 140 150 5 - - -
9 PL180 Combination PS/PP 180 70 30 User defined L2+20 10 - - -
10 PL200 Combination PS/PP 200 70 30 60-200 70-210 5 - - -
11 PL220 Combination PS/PP 220 70 30 60-200 70-210 5 - - -
12 PL250 Combination PS/PP 250 70 30 60-200 70-210 5 - - -
13 PL255 Combination PS/PP 255 70 30 User defined L2+20 10 - - -
14 PL270 Combination PS/PP 270 70 30 User defined L2+20 10 - - -
15 PL300A Overall PS 300 130 30 130 160 15 - - -
16 PL300B Combination PS/PP 300 100 32/40 60-200 70-210 5 - - -
17 PL300C Combination PP 300 100 80 60-200 76-216 8 - - -
18 PL300D Combination PP 300 100 30 60-200 76-216 8 - - -
19 PL300E Combination PP 300 125 32/40 User defined L2+32 16 - - -
20 PL330 combination PP 330 125 32/40 User defined L2+32 16 - - -
21 PL360 Combination PP 360 180 80 User defined L2+16 8 - - -
22 PL400 Combination PP 400 200 56 150-280 190-320 20 - - -
23 PL630 Combination PP 630 250 68 250-410 300-460 25 - - -
