PRODUCTS

Scope: PC Series Plastic coil with ABS, PS and other engineering plastics injection molding. Mainly used for a variety of copper wire, alloy wire, steel wire, such as packaging, you can repeat the working capital use.
Note: The mouse over and view the pictures
No. Model Map Structure Material Side diameter d1 Cylinder diameter d2 Aperture d3 Within the width L2 External width L1 Side S R e1 e2
1 PC44 Overall ABS/PS 44 32 24 50 60 5 - - -
2 PC49 Overall ABS/PS 49 34 16/20 59 79 10 - - -
3 PC52 Overall ABS/PS 52 32 20 70 82 6 - - -
4 PC55A Overall ABS/PS 55 42 17 40 52 6 - - -
5 PC55B Overall ABS/PS 55 42 23 50 62 6 - - -
6 PC60 Overall ABS/PS 60 38 20 70 84 7 - - -
7 PC62A Overall ABS/PS 62 30 22 30 40 5 - - -
8 PC62B Overall ABS/PS 62 44 16 51 60 4.5 - - -
9 PC69 Overall ABS/PS 69 44 16/20 59 79 10 - - -
10 PC70 Overall ABS/PS 70 42 20 70 87 8.5 - - -
11 PC80 Overall ABS/PS 80 42 20 70 87 8.5 - - -
12 PC90 Overall ABS/PS 90 50 20 70 90 10 - - -
13 PC100A Overall ABS/PS/PP 100 50 20 70 90 10 - - -

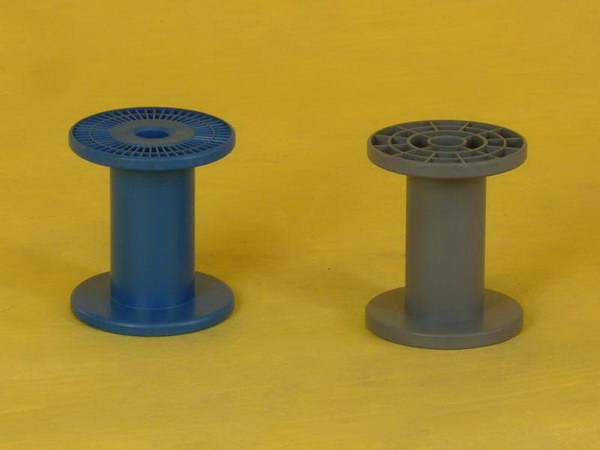

14 PC100B Overall ABS/PS/PP 100 55 20 100 120 10 - - -
15 PC125 Overall ABS/PS/PP 125 65 20 100 120 10 - - -
16 PC130A Overall ABS/PS 130 60 20 90 110 10 - - -
17 PC130B Overall ABS/PS 130 80 20 90 110 10 - - -
18 PC150A Overall ABS/PS 150 68 26 76 96 10 - - -
19 PC150B overall ABS/PS 150 68 26 76 96 10 - - -
20 PC152A Overall ABS/PS 152 90 16 90 110 10 - - -
21 PC152B overall ABS/PS 152 102 16 102 122 10 - - -
22 P-5R Overall ABS/PS 160 90 20 90 114 12 - - -
23 PC160 Overall ABS/PS 160 100 22 128 160 16 - - -
24 PC185 Overall ABS/PS/PP 185 130 30 160 180 10 - - -
25 PC200A Overall ABS/PS 200 90 25 110 134 12 - - -
26 PC200B Overall ABS/PS 200 125 22 160 200 20 - - -
27 PC250A Combination ABS/PS 250 100 30/33/37 153 183 15 - - -
28 PC250B Combination ABS/PS 250 100 30/33/37 180 210 15 - - -
29 PC250C Overall ABS/PS 250 160 30 160 200 20 - - -

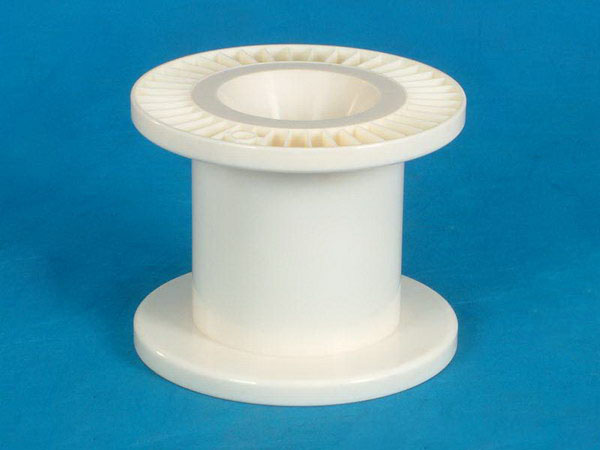

30 PC250D Overall ABS/PS 250 160 127 160 200 20 - - -
31 PC250E Overall ABS/PS 250 160 22 160 200 20 - - -
32 PC250F Overall ABS/PS 250 160 75 160 200 20 - - -
33 PC250G Overall ABS/PS 250 160 102 160 200 20 - - -
34 PC250H Overall ABS/PS 250 160 36 160 200 20 - - -
35 PC300 Overall ABS/PS 300 130 30/32/45 130 160 15 - - -
36 PC350 Combination ABS/PS 350 180 56.7 User defined User defined 12 - - -

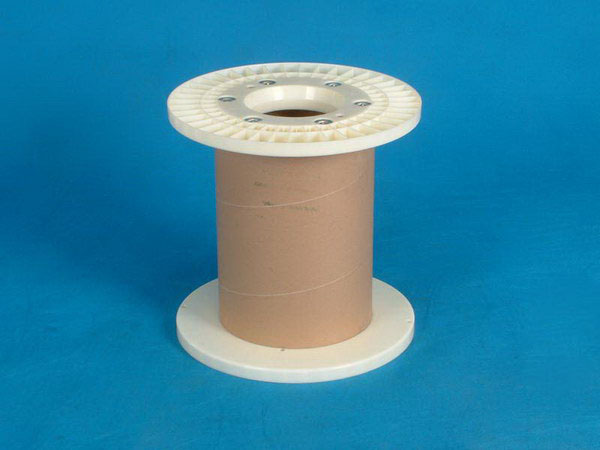

37 PC355 Combination ABS/PP 355 228 127 315 355 20 - - -
38 PC500 Combination ABS/PP 500 315 36 180 250 35 - - -
